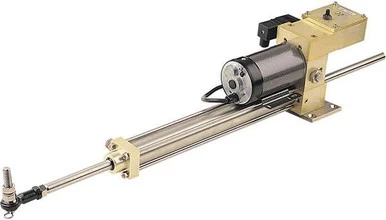

Simrad HLD2000MK2L Long Linear Drive Unit

The Simrad HLD2000MK2L Long Linear Drive Unit is a hydraulic linear drive designed for larger boats with mechanical steering systems. The HLD2000MK2L works as part of an accurate auto-steering system with a Simrad AC42 autopilot computer.

Simrad HLD2000MK2L Long Linear Drive Unit Features:

• Highly Accurate: Minor incremental adjustments provide a smooth auto-steering experience
• Powerful: Outstanding performance even under heavy loads
• Direct Rudder Connection: Ensures the safest passage as the linear drive can be used even if the hand steering should fail
• By-Pass Valve: Allows you to use the helm with little back drive force when the autopilot is switched off
• Simrad Yachting Construction: Brutally strong and built to withstand the environment
• Power Supply: 12V (3-10A)
• Max Stroke: 340
• Max Torque [Nm]: 1460
• Peak Thrust: 500kg
• Drive Unit Max Thrust: 500
• Drive Unit Tiller Arm [mm]: 298
• Max Boat Displacement [tons]: 20

***To ensure you select the right components for your boat, please call us toll free at 1-888-354-7335***
